Description

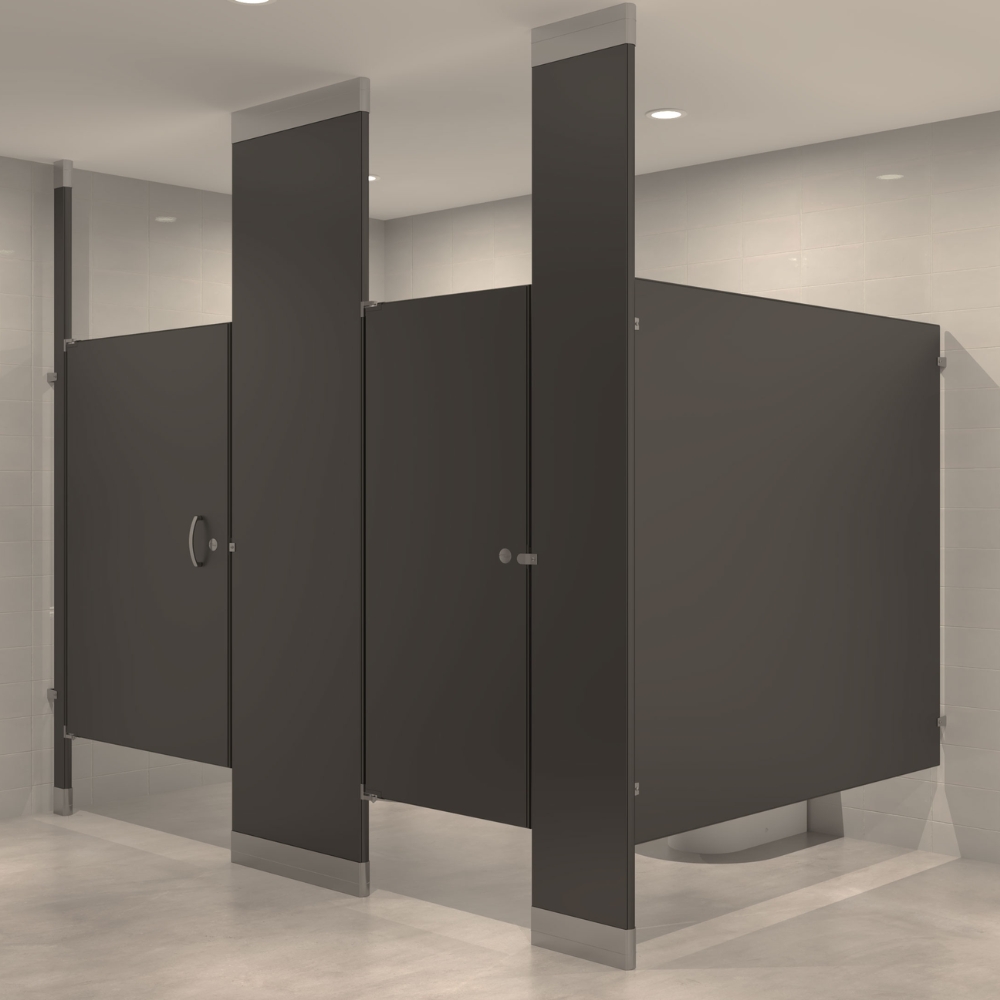

Upgrade commercial restrooms with Hadrian Elite Plus floor-to-ceiling powder coated toilet partitions featuring brushed stainless steel locking bars for enhanced durability, privacy, and long-lasting performance. Designed for high-traffic facilities, these metal restroom partitions include 72-inch high doors and panels, zinc-coated galvanneal steel construction, a sound-deadening honeycomb core, full-height continuous channels, concealed latching, and a durable powder coated finish. Ideal for schools, offices, public buildings, retail spaces, and other commercial washrooms, the Elite Plus system provides a secure, rigid installation with improved sightline coverage, smooth door operation, and a clean professional appearance. Positioned as a direct upgrade from the standard Elite Series, the Elite Plus line focuses on significantly reducing visibility and creating a more comfortable, secluded experience for users.
Download Brochure
PRODUCT SPECIFICATION SUMMARY
| Specification | Details |
|---|---|
| Product Type | Floor-to-ceiling toilet partitions |
| Product Line | Hadrian Elite Plus |
| Finish | High-performance powder coating with color selected from Hadrian’s color card |
| Locking Bars | Brushed stainless steel roll-formed oval crown locking bars |
| Construction | Zinc-coated galvanneal steel sheets laminated under pressure to a honeycomb core for sound deadening and rigidity |
| Core | Honeycomb core with maximum 25 mm (1 in.) cell size |
| Doors | 25 mm (1 in.) thick, 1829 mm (72 in.) high, 22-gauge minimum cover sheets |
| Panels | 25 mm (1 in.) thick, 1829 mm (72 in.) high, 22-gauge minimum cover sheets; maximum depth 1473 mm (58 in.) |
| Pilasters | 32 mm (1.25 in.) thick with 18-gauge minimum cover sheets |
| Connections | Full-height continuous channels for panel-to-pilaster, panel-to-wall, and pilaster-to-wall connections |
| Hardware | Chrome-plated zinc die-cast hardware with adjustable wrap-around hinges, concealed latch, coat hook and bumper, emergency access turn slot, and continuous rubber bumper door stop |
| Pilaster Shoes | 102 mm (4 in.) high, one-piece welded polished stainless steel shoes |
| Mounting | Floor-to-ceiling installation with concealed floor fastening and ceiling studs for rigid vertical support |
| Warranty | 3-year written manufacturer guarantee against defects in design, materials, and workmanship |
| Recommended Applications | Commercial restrooms, schools, offices, public buildings, retail spaces, and high-traffic washrooms |
Maximum Privacy Features
The most significant difference in the Elite Plus line is its enhanced panel and door sizing.
- Extended Heights: The series features 72-inch high doors and panels, compared to the standard 58-inch height.
- Lower Floor Clearance: Panels are mounted just 6 or 9 inches above the finished floor, whereas standard stalls leave a 12-inch gap.
- “No-Sightline Solution”: To ensure total privacy, the system utilizes full-height continuous stops and extruded aluminum components to completely block the gaps between panels and doors.
Premium Material Choices
The Elite Plus Series bridges the gap between cost-effective durability and high-end aesthetics by offering two excellent material options:
- Powder Coated Steel: An incredibly cost-effective option that doesn’t compromise on quality. It features a Class-A fire rating and comes in a wide variety of colors and graffiti-resistant finishes.
- Stainless Steel: For a more opulent, modern restroom design, stainless steel offers a sleek appearance with textured options designed to resist scratches and damage.
Structural Advantages
Regardless of the finish, these stalls are engineered for easy installation and long-term stability. The panels feature a honeycomb interior core, which keeps the material remarkably lightweight while maintaining superior structural rigidity. They can be installed using either headrail braced or floor-to-ceiling mounting styles to suit your specific architectural needs.
