The Elite Series | European Style Toilet Partitions
The Elite Series is a premium toilet partition system designed to significantly upgrade standard commercial restroom stalls by prioritizing maximum privacy and a sleek, modern aesthetic. By utilizing extended panel heights and a specialized hardware system, the Elite Series provides a highly secure and enclosed environment for users without the need to construct fully private, individual rooms. Offers increased privacy with 64” (1626mm) high doors and panels, mounted just 6” (152mm) or 9″ (229mm) from the finished floor. Continuous channels eliminate all sightline gaps. The Elite Series is available in headrail-braced, ceiling-hung, floor-mounted, and floor-to-ceiling styles.
Here is a detailed look at the core features of the Elite Series:
| Feature | Specification / Details |
|---|---|
| Product Line | Elite Series Toilet Partitions |
| Door & Panel Height | 64 inches (1626mm). |
| Mounting Height (Floor Clearance) |
6 inches (152mm) or 9 inches (229mm) above the finished floor. Note: Floor mounted styles are specifically mounted 9 inches above the floor. |
| Available Materials | Powder Coated Steel and Stainless Steel. |
| Mounting Styles | Headrail braced, ceiling hung, floor mounted, and floor to ceiling configurations. |
| Privacy Design | Utilizes the “No-Sightline Solution”, featuring full-height continuous channels, continuous stops, and hinge side fillers to completely eliminate all visual sightline gaps around the door. |
| Hardware & Acoustics | The full-height continuous stop distributes force evenly along the door and includes a full-height rubber bumper to deaden sound and protect against wear. Features a metal keeper for secure latching and long-lasting performance. |
| Aesthetic Integration | Continuous stops and hinge side fillers feature no exposed fasteners on the exterior. Extruded aluminum parts are painted to match powder-coated partitions or brushed-finished to complement stainless steel. |
| Safety & Sustainability | Both materials offer Class-A fire resistance, and the stainless steel option provides an outstanding 91% recycled content. |
Enhanced Dimensions for Maximum Privacy
The Elite Series replaces standard stall dimensions with impressive 64-inch high doors and panels. To further maximize seclusion, these partitions are mounted closer to the ground—just 6 or 9 inches above the finished floor. (Note: Floor-mounted styles are specifically mounted 9 inches above the floor).

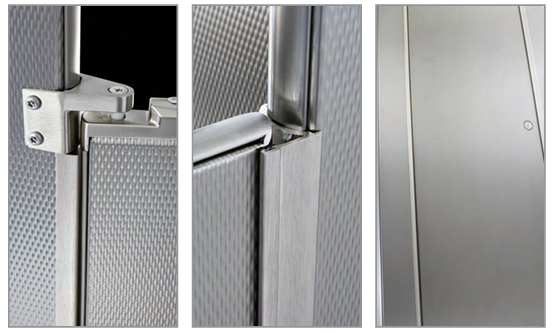

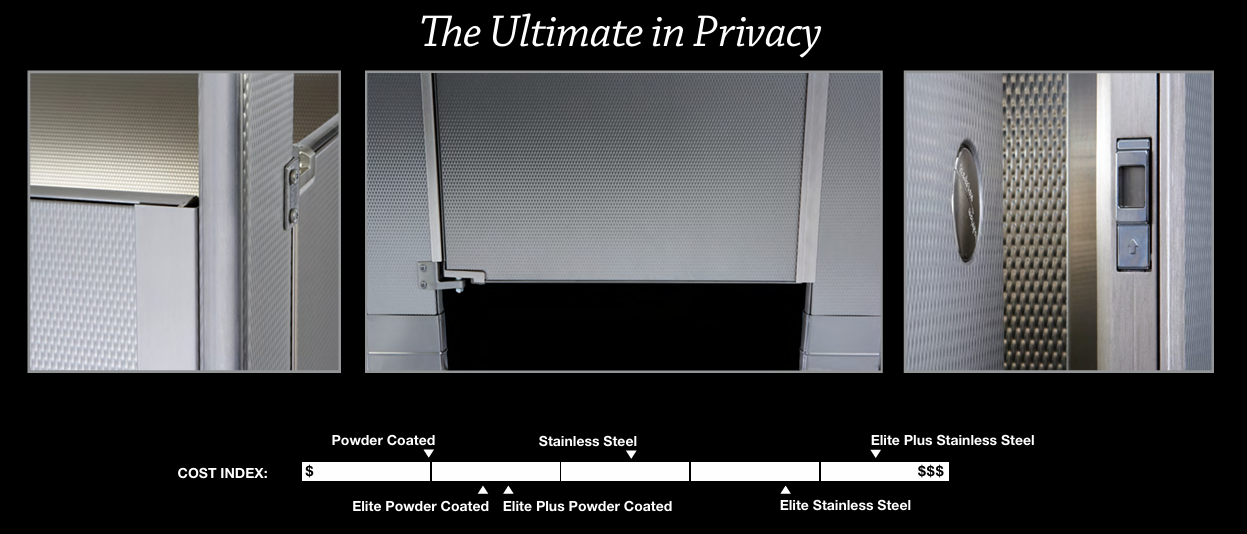

The “No-Sightline Solution”
To guarantee total privacy, the Elite Series utilizes full-height continuous channels, stops, and hinge-side fillers to completely eliminate all visual gaps around the door.
Sound-Deadening & Durability
The full-height continuous stop distributes force evenly along the door and includes a full-height rubber bumper to deaden sound when the door closes and protect against wear. Additionally, a metal keeper ensures secure latching and long-lasting performance.
Clean and Unobtrusive Aesthetic
To promote a flawless appearance, the continuous stop and hinge side filler are designed with no exposed fasteners on the exterior. Extruded aluminum components are either painted to match powder-coated partitions or brush-finished to complement stainless steel partitions.
Versatile Mounting Configurations
The Elite series is highly adaptable to different restroom layouts and can be installed in headrail braced, ceiling hung, floor mounted, and floor-to-ceiling styles.
Premium Material Options
You can choose between Powder Coated Steel and Stainless Steel finishes. Both materials offer Class-A fire resistance, while the stainless steel option adds excellent corrosion and impact resistance, alongside an outstanding 91% recycled content.
Accessible and Secure Hardware
The series features an exclusive thumbturn lever latch that conforms to American Disability Act (ADA) requirements, allowing it to be activated with a short, easy movement without needing a tight finger grip. It also utilizes a double-ridge, anti-grip headrail design to deter boisterous activity and damage.
For more information, please refer to our material selection guide.
