Metpar Powder Coated

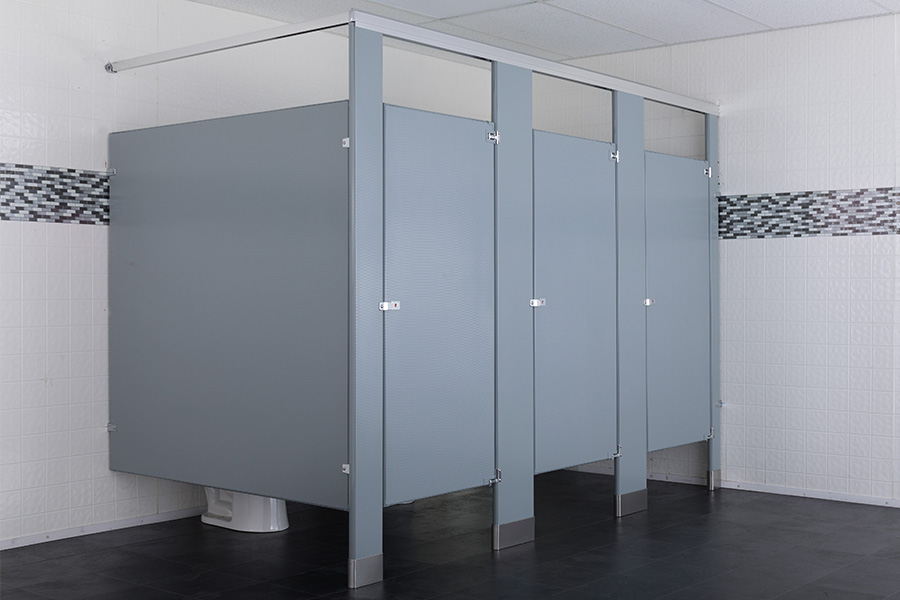

Metpar Powder Coated Toilet Partitions
Powder coated steel toilet partitions are the industry standard and are the most popular choice for new construction or remodeling of restroom partitions due to their durable quality and economical pricing. The powder coated finish is electrostatically applied over galvannealed steel, which protects against corrosion and provides a proper base and adhesion for a durable and smooth powder coated finish.
This surface is three times more resistant to humidity and salt spray than solvent based painted finishes and it is highly resistant to stains, scratching, scuffing, and corrosion. With a low noise level, powder coated metal toilet partitions are ideal for high traffic areas such as schools, churches, and libraries. The lightweight metal product provides for ease of installation. It is easily cleaned and is available in a large variety of colors to fit any new restroom construction or renovation.

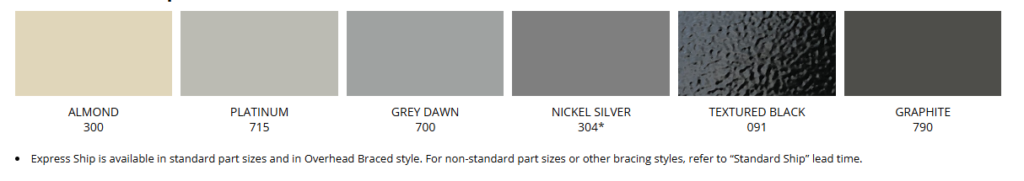

In Stock: Ships in 48 Hours!
- Express Ship is available in standard part sizes and in Overhead Braced style. Grey Dawn & Almond also available in Floor Mounted style.
- For non-standard part sizes or other bracing styles, refer to “Standard Ship” lead time.
- Textured Black express ship is FOB New York.

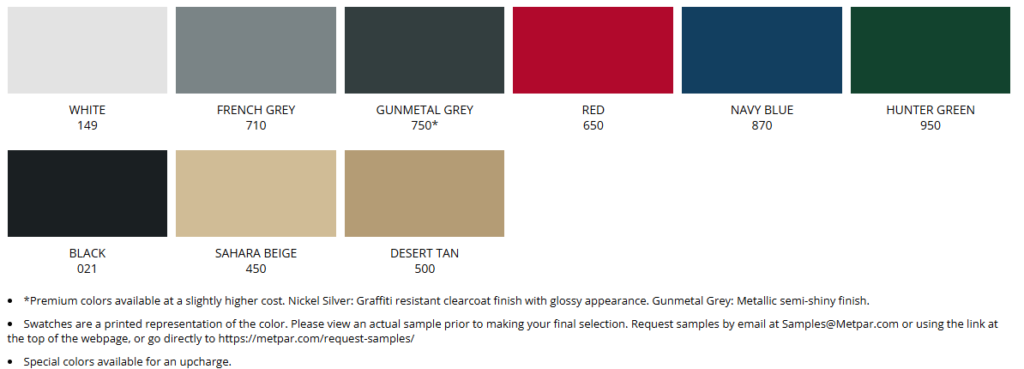

Standard Ship: Ships in 8-12 Business Days!
- *Premium colors available at a slightly higher cost. Nickel Silver: Graffiti resistant clearcoat finish with glossy appearance. Silver Sparkle: Graffiti resistant clearcoat finish with light silver metallic sparkle. Gunmetal Grey: Metallic semi-shiny finish. Desert Speckle, Pepper Gray, Coyote Granite, Ash Granite, Navy Grafix: Multi-color speckle.
- Swatches are a printed representation of the color. Please view an actual sample prior to making your final selection. Request samples via samples@metpar.com
- Special colors available for an upcharge.
Quality Engineering
Features & Benefits
Construction Details
- Construction features 1″ thick doors and panels, 1-1/4″ pilasters, constructed of two sheets of galvanneal steel, formed and cemented under pressure to a honeycomb core.
- All edges are finished with 20-gauge interlocking steel moldings. Corners are welded and finished with pre-formed stainless steel reinforcements.
- Doors feature steel reinforcements to secure hardware items, with “in-use” indicator latch.
- Rust inhibitive coated material is painted with multiple coats of epoxy-hybrid powder, applied electrostatically and baked until cured.
- Standard wall fittings are chrome-plated die-cast zamac.
Popular & Economical
- Construction features 1″ thick doors and panels, 1-1/4″ pilasters, constructed of two sheets of galvanneal steel, formed and cemented under pressure to a honeycomb core.
- All edges are finished with 20-gauge interlocking steel moldings. Corners are welded and finished with pre-formed stainless steel reinforcements.
- Doors feature steel reinforcements to secure hardware items, with “in-use” indicator latch.
- Standard wall fittings are chrome-plated die-cast zamac.
Lightweight & Strong
- Lightweight material allows for ease of installation, material handling, and lower freight costs.
- Standard wall fittings are chrome-plated die-cast zamac.
Excellent ROI
- Construction features 1″ thick doors and panels, 1-1/4″ pilasters, constructed of two sheets of galvanneal steel, formed and cemented under pressure to a honeycomb core.
- Doors feature steel reinforcements to secure hardware items, with “in-use” indicator latch.
- Standard wall fittings are chrome-plated die-cast zamac.
Designed for Comfort
Privacy Series
Combine any series with any style. Try our design visualizer!
Standard
Standard series includes 58” high doors and panels that are mounted 12” above finished floor. Additional options include, no-sight doors (privacy strips) and full-length continuous brackets. This series is the industry standard.
Dorian
Privacy!
Dorian series includes 64” high doors and panels that are mounted 6” above finished floor. Full-length continuous brackets and privacy strips for no-sight doors are included. Enhanced level of privacy compared to standard series.
Dorian Max
Ultimate Privacy!
Dorian Max series includes 72” high doors and panels that are mounted 6” above finished floor. Full-length continuous brackets and privacy strips for no-sight doors are included. Head to toe king of ultimate privacy!
Installation Layouts
Mounting Styles
Combine any style with any series. Try our design visualizer!
Overhead Braced
Created for areas where high strength is required and installation considerations prevent other toilet partition options. Headrail is used for additional strength. Most popular style.
Floor Mounted
Floor mounted structure is ideal for restrooms with concrete floors. It provides a consistent appearance across the top of panels and pilasters for a modern look. Headrail is not required.
Ceiling Hung
This style provides for unobstructed floor space beneath the stalls. Floor to ceiling pilasters can be added to provide maximum strength and durability.
Floor to Ceiling
Recommended for rooms with low to medium height ceilings where additional stability is desired. Maximum recommended floor to ceiling height of 96″. Requires ceiling reinforcement.
Anatomy of the Stall
Construction Features Detail
Powder Coat Finish
Rust inhibitive coated material is painted with multiple coats of epoxy-hybrid powder, applied electrostatically and baked until cured. Beautiful and smooth finish.
Anti-Grip Headrail
Bright dipped aluminum headrail to match chrome hardware for a coordinated uniform appearance. The top is pointed, resulting in an “anti-grip” top structure to prevent hanging from the partition.
Adjustable Cam
Bottom of the door features a unique “no rise” self-closing and concealed adjustable cam. Hardware is constructed of zamac die cast metal.
Pin Insert
Top of the door features a heavy duty 3/8″ diameter chrome plated steel pin with nylon insert for smooth operation. Hardware is constructed of zamac die cast metal.
Concealed Latch
The door features a unique ADA-approved concealed slide latch with external two color (green/red) “in use” indicator designed to provide emergency accessibility from the outside of the stall. Hardware is constructed of zamac die cast metal.
Pilaster Shoe
Each pilaster has a 4” high #4 finish stainless steel plinth (shoe) beautifully connecting the bottom of the pilaster to the floor, aesthetically hiding the floor mountings and any visible drill holes.
Honeycomb Core
The interior of all doors, panels, and pilasters are reinforced with vertical cellular honeycomb core, bonded with super strong & long-lasting adhesives to every inch of the interior walls, enhancing strength, impact resistance, and providing extra support.
Corner Clips
All door and panel corners are finished with pre-formed painted stainless steel reinforcements. Corners are welded internally to ensure that the galvanized rust resistant coating is not removed. These beautiful corner clips prevent any necessity of external corner welding and metal grinding, yielding an aesthetically pleasing and strong structural connectivity that lasts a long time.
Wall Brackets
The panels feature wall brackets, which provides a structurally strong connection for panel to wall connection/mounting. Hardware is constructed of zamac die cast metal.
U Brackets
Pilasters are connected to the panels with U brackets, providing a structurally strong and tight connection. Hardware is constructed of zamac die cast metal.
Interlocking Moldings
All edges of doors, panels, and pilasters are finished with a 20-gauge interlocking molding around the perimeter, providing a strong structural interlocking connection.
Upgrades & custom options
Premium Options
Privacy Strips
Heavy duty aluminum privacy strips eliminate any sight gaps on each side of the door. One strip on the latch side acts as a continuous door stop, while the other is positioned between the upper and lower hinge, eliminating any chance of “peeking” into the stalls. Increasingly, privacy is now a priority.
Welded Corners
All panel & door corners are available in full corner weld, which is then ground smooth, and finished with a smooth powder coat paint. This corner weld provides for an enhanced, strong, and aesthetically appealing corner seal, which extends the product lifetime.
Continuous Brackets
Full length continuous brackets are available in both aluminum or stainless steel. This bracket provides extra strength, additional structural support, and allows for no line of sight at the panel connections. This option is much more heavy duty than standard wall brackets and is highly recommended for facilities with vandalism concerns and privacy preferences. (Image shown above is in solid plastic material).
Painted Brackets / Privacy Strips
Brackets & privacy strips can be painted to match the color of the partition, providing a visually continuous appearance and one color across the construction.
Stainless Steel Edge Molding
Stainless steel edge moldings/edge trim are available for all powder coated doors & panels. This design feature provides for additional aesthetic appeal, extra strength and durability, and design differentiation. Need that extra visual pop? Here’s your solution. (Shown on Dur-A-Tex material).
Stainless Steel Hardware
All hardware is available in #4 brushed stainless steel for an extra durable appearance & even longer-lasting product lifetime. This material is heavy duty and will not rust.
Clear Gloss Coating
A proprietary two-coat paint process (clear high gloss polyester coating) developed by Metpar on galvanized steel increases the durability, plus improves resistance to graffiti and corrosion. This process vastly improves the service life of the product. This coating provides a lustrous appearance & aesthetically appealing shine. If you’re looking to differentiate your powder coated steel partitions with a more upscale appearance, give this coating a try.
Premium/Special Colors
Premium colors are available in Nickel Silver, Gunmetal Grey, and Silver Lava. Provides for an extra high-end finish and interior luster. Additionally, non-listed customer chosen colors can be selected and used in production. Provide us with any powder coat paint color of your choice, and we’ll get it done!
FT Mountings on FP Pilasters
If you’re looking for a heavier duty floor mounted on Overhead Braced (FP) partitions, you can upgrade to heavier duty floor mounted (FT) partition floor mounts. This provides a more sturdy and heavier duty mounting option for extra base/structural stability and support.
Components Directory
Hardware Overview
Materials: Door hardware is available in die-cast chrome or cast stainless steel. Bracket hardware is available in die-cast chrome or stamped stainless steel.
Door Hardware
- Top Hinge Bracket
- Top Hinge Pin
- Bottom Hinge Bracket
- Surface Mounted Latch
- Door Pull
- Coat Hook & Bumper
- Door Bumper
- Stay Set Cam
- Concealed Latch
- Strike & Keeper
- Strike & Keeper Surface Latch (Inswing / Emergency)
- Strike & Keeper Surface Latch (Inswing / Non-Emergency)
- Strike & Keeper Surface Latch (Outswing)
Brackets
- 1″ – 2 Ear Bracket
- 1″ – 1 Ear Bracket
- 1-1/4″ – 1 Ear Bracket
- 1″ – U-Bracket
- Panel/Pilaster Alcove Clip
Mountings & Headrails
- Aluminum Anti Grip Headrail
- Aluminum Rectangular Headrail
- Headrail to Wall Bracket
- Anti Grip Headrail End Cap
- Headrail to Pilaster Bracket
- 4″ High Pilaster Shoe (aka Plinth)
- Post Cap
- Post Shoe
- Shoe Clip
- Shoe Floor Bracket
