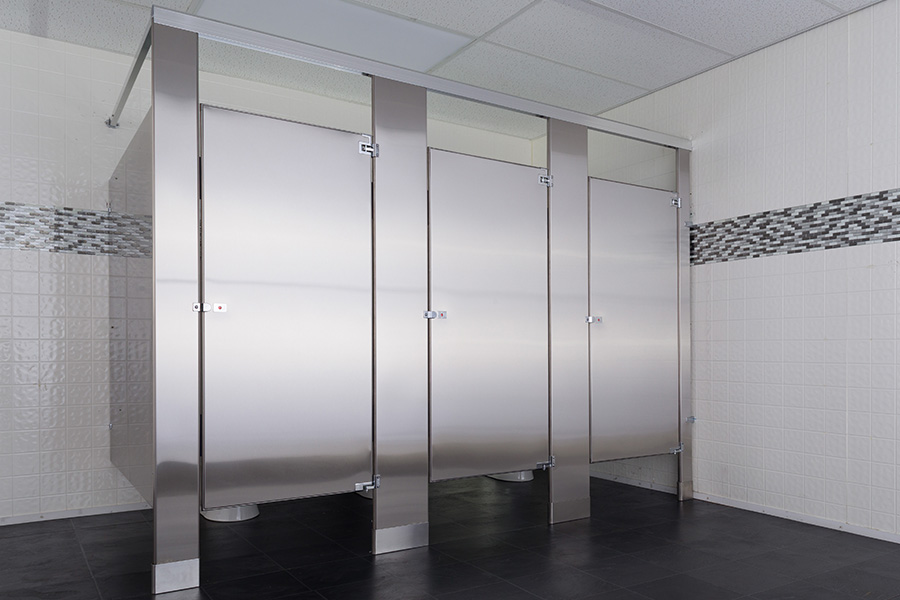

Metpar Stainless Steel Toilet Partitions

Stainless steel toilet partitions lend a feeling of luxury and a modern appearance to any commercial restroom environment where appearance and strength are prime considerations. The superior appearance of stainless steel has a sleek design that appeals to the eye and imparts a visual and glowing beauty unmatched by any other material. It is a virtually indestructible choice which combines the strength of #304 stainless steel with the gleaming beauty of brushed and textured stainless finish options.

Stainless steel proves to be a wise selection for its ease of cleaning, durability, and resistance to humid conditions (the material will not rust). Dirt, grease and cosmetics are easily removed. Even scratches can be eliminated by buffing the finish and blending the surface. The elegance of stainless steel toilet partitions complements any design scheme, whether in new construction or restroom renovations. If you’re looking to impress, then look no further.

Show All Collapse

Materials: Door hardware is available in die-cast chrome or cast stainless steel. Bracket hardware is available in die-cast chrome or stamped stainless steel.

Part Numbers: To view individual part numbers, hover your mouse over each part image below.

Replacement Parts: If you would like to order replacement parts, please identify your part number and submit this request form. Click Here!

In Stock. Ships in 48 Hours!

Standard #4 Finish

Quick ship only available in standard part sizes and in the following style (overhead-braced).
For non-standard part sizes or other configuration styles, refer to “made to order” lead time below.

Standard Shipping. Ships in 8-12 (Satin), 17 (5SM), and 15-19 (Leather Grain) Business Days!

5SM Pattern Finish

Swatches are a printed representation of the finish. Please view an actual sample prior to making your final selection.

Construction Details

Construction features 1" thick doors and panels, 1-1/4" pilasters, constructed of two sheets of galvanneal steel, formed and cemented under pressure to a honeycomb core.

All edges are finished with 20-gauge interlocking steel moldings. Corners are welded and finished with pre-formed stainless steel reinforcements.

Corners are welded internally and are finished with pre-formed stainless steel reinforcements.

Doors have internal steel reinforcements to secure hardware items, and come equipped with the "in-use" color-coded indicator.

Wall fittings are chrome plated zamac die-castings. Hardware features emergency outside access to stall.

Impact on Design

Apart from basic durability, an important concern for many property owners, architects and designers is fulfilling an aesthetic vision with high-end and visually appealing finishes.

Stainless Steel creates an upscale feeling of luxury and modern appearance within any commercial restroom.

The range of standard and custom finish options available fulfills the most demanding design criteria.

Stainless Steel is the most high-end material and its elegance complements any design scheme made to impress.

Corrosion Resistant

Our stainless-steel partitions are manufactured from #304 stainless steel material, the most high-end, durable, and corrosion resistant stainless steel available.

This material has a much higher corrosion resistance than regular steel, extending the life of the product and preventing rust.

When designing and planning commercial restrooms, many business owners & architects require corrosion resistant material due to humid and potentially wet environments, selecting stainless steel as a full solution.

Enhanced Strength

Architects select stainless steel partitions when strength is a prime consideration.

Virtually indestructible choice and one of the most durable toilet partition materials.

Even scratches caused by deliberate vandalism can be removed by buffing.

Combine any series with any style. Try our design visualizer!

Combine any style with any series. Try our design visualizer!

Overhead Braced

Created for areas where high strength is required and installation considerations prevent other toilet partition options. Headrail is used for additional strength. Most popular style.

Floor Mounted

Floor mounted structure is ideal for restrooms with concrete floors. It provides a consistent appearance across the top of panels and pilasters for a modern look. Headrail is not required.

Ceiling Hung

This style provides for unobstructed floor space beneath the stalls. Floor to ceiling pilasters can be added to provide maximum strength and durability.

Floor to Ceiling

Recommended for rooms with low to medium height ceilings where additional stability is desired. Maximum recommended floor to ceiling height of 96″. Requires ceiling reinforcement.

ADJUSTABLE CAM

Bottom of the door features a unique “no rise” self-closing and concealed adjustable cam. Hardware is constructed of zamac die cast metal.

ANTI-GRIP HEADRAIL

Bright dipped aluminum headrail to match chrome hardware for a coordinated uniform appearance. The top is pointed, resulting in an “anti-grip” top structure to prevent hanging from the partition. (Above picture shown in black core phenolic).

PIN INSERT

Top of the door features a heavy duty 3/8″ diameter chrome plated steel pin with nylon insert for smooth operation. Hardware is constructed of zamac die cast metal.

CONCEALED LATCH

The door features a unique ADA-approved concealed slide latch with external two color (green/red) “in use” indicator designed to provide emergency accessibility from the outside of the stall. Hardware is constructed of zamac die cast metal.

PILASTER SHOE

Each pilaster has a 4” high #4 finish stainless steel plinth (shoe) beautifully connecting the bottom of the pilaster to the floor, aesthetically hiding the floor mountings and any visible drill holes.

HONEYCOMB CORE

The interior of all doors, panels, and pilasters are reinforced with vertical cellular honeycomb core, bonded with super strong & long-lasting adhesives to every inch of the interior walls, enhancing strength, impact resistance, and providing extra support.

CORNER CLIPS

All door and panel corners are finished with pre-formed stainless steel reinforcements. Corners are welded internally to ensure that the galvanized rust resistant coating is not removed. These beautiful corner clips prevent any necessity of external corner welding and metal grinding, yielding an aesthetically pleasing and strong structural connectivity that lasts a long time.

U BRACKETS

Pilasters are connected to the panels with U brackets, providing a structurally strong and tight connection. Hardware is constructed of zamac die cast metal.

WALL BRACKETS

The panels feature wall brackets, which provides a structurally strong connection for panel to wall connection/mounting. Hardware is constructed of zamac die cast metal.

INTERLOCKING MOLDINGS

All edges of doors, panels, and pilasters are finished with a 20-gauge interlocking molding around the perimeter, providing a strong structural interlocking connection.

PREMIUM FINISHES

Premium finishes are available in both 5SM Pattern Finish and Leather-Grain Finish. Both are texturized finishes combined with the lustrousness of our standard satin finish.

PRIVACY STRIPS

Heavy duty aluminum privacy strips eliminate any sight gaps on each side of the door. One strip on the latch side acts as a continuous door stop, while the other is positioned between the upper and lower hinge, eliminating any chance of “peeking” into the stalls. Increasingly, privacy is now a priority. (Image shown on powder coated material).

CONTINUOUS BRACKETS

Full length continuous brackets are available in both aluminum or stainless steel. This bracket provides extra strength, additional structural support, and allows for no line of sight at the panel connections. This option is much more heavy duty than standard wall brackets and is highly recommended for facilities with vandalism concerns and privacy preferences. (Image shown on solid plastic material).

STAINLESS STEEL HARDWARE

All hardware is available in #4 brushed stainless steel for an extra durable appearance & even longer-lasting product lifetime. This material is heavy duty and will not rust.

WELDED CORNERS

All panel & door corners are available in full corner weld, which is then ground smooth. This corner weld provides for an enhanced, strong, and aesthetically appealing corner seal, which extends the product lifetime.

FT MOUNTINGS ON FP PILASTERS

If you’re looking for a heavier duty floor mountd on Overhead Braced (FP) partitions, you can upgrade to heavier duty floor mounted (FT) partition floor mounts. This provides a more sturdy and heavier duty mounting option for extra base/structural stability and support.

Materials: Door hardware is available in die-cast chrome or cast stainless steel. Bracket hardware is available in die-cast chrome or stamped stainless steel.

Part Numbers: To view individual part numbers, hover your mouse over each part image below.

Replacement Parts: If you would like to order replacement parts, please identify your part number and submit this request form.

Metpar Stainless Steel Toilet Partitions

In Stock. Ships in 48 Hours!

Standard Shipping. Ships in 8-12 (Satin), 17 (5SM), and 15-19 (Leather Grain) Business Days!

Construction Details

Impact on Design

Corrosion Resistant

Enhanced Strength

Standard

Dorian - Privacy!

Dorian Max - Privacy!

Overhead Braced

Floor Mounted

Ceiling Hung

Floor to Ceiling

ADJUSTABLE CAM

ANTI-GRIP HEADRAIL

PIN INSERT

CONCEALED LATCH

PILASTER SHOE

HONEYCOMB CORE

CORNER CLIPS

U BRACKETS

WALL BRACKETS

INTERLOCKING MOLDINGS

PREMIUM FINISHES

PRIVACY STRIPS

CONTINUOUS BRACKETS

STAINLESS STEEL HARDWARE

WELDED CORNERS

FT MOUNTINGS ON FP PILASTERS

DOOR HARDWARE

Top Hinge Bracket

Top Hinge Pin

Bottom Hinge Bracket

Surface Mounted Latch

Door Pull

Coat Hook & Bumper

Door Bumper

Stay Set Cam

Concealed Latch

Strike & Keeper

Strike & Keeper Surface Latch (Inswing / Emergency)

Strike & Keeper Surface Latch (Inswing / Non-Emergency)

Strike & Keeper Surface Latch (Outswing)

BRACKETS

1" - 2 Ear Bracket

1" - 1 Ear Bracket

1-1/4" - 1 Ear Bracket

1" - U-Bracket

Panel/Pilaster Alcove Clip

MOUNTINGS & HEADRAILS

Aluminum Anti Grip Headrail

Aluminum Rectangular Headrail

Headrail to Wall Bracket

Anti Grip Headrail End Cap

Headrail to Pilaster Bracket

4" High Pilaster Shoe (aka Plinth)

Post Cap

Post Shoe

Shoe Clip

Shoe Floor Bracket
