Solid Phenolic (Color Thru) is a unique material designed especially for full water contact, high traffic, and vandal-prone environments. It is ideal for high humidity areas, or where hose-down cleaning methods are used.
The material is composed of melamine impregnated decorative surface papers superimposed over a varying number of Kraft phenolic core sheets to achieve a desired thickness, forming a one-piece solid and compact core panel, which will not delaminate. This material has a solid and homogeneous color throughout (as compared to black core phenolic that has a black core and black edges).
The heavy duty and superior strength of phenolic offers many advantages, including overall damage resistance. Metpar rates Phenolic Color Thru Class B as standard and states the material exceeds Class A under ASTM E84 flame spread and smoke developed testing; confirm the rating your project requires with your estimator. The finish is available in many designer color and wood grain texture options to appeal to any decorating taste. If you are seeking the ultimate heavy duty, water-proof option, then look no further.
- Product Details & Resources
- Standard Ship: Ships in 8-12 Business Days!
- Color Info & Swatch Disclaimers:
- * Directional patterns on panels larger than 59″ wide will require the pattern to run horizontally to the doors and pilasters.
- All colors are #60 finish. For selections other than standard colors, contact Metpar for price.
- Swatches are a printed representation of the color. Please view an actual sample prior to making your final selection. Request samples via samples@metpar.com
Metpar Phenolic Color Thru Partitions at a glance
- Construction
- Solid compact phenolic laminate with color all the way through; will not delaminate
- Thickness
- Doors and pilasters 3/4"; panels 1/2"
- Privacy series
- Standard (58" door, 12" above floor), Dorian (64", 6"), Dorian Max (72", 6")
- Mounting
- Overhead braced, floor mounted, ceiling hung, floor to ceiling
- Colors
- 5 standard colors, all #60 finish: Dove Grey, High Line, Pressed Linen, Phantom Ecru, Field Elm
- Hardware
- 13-gauge type 304 stainless brackets, stainless surface-mounted latch, wrap-around strike and keeper
- Fire rating
- Class B as standard; Metpar also states the material exceeds Class A under ASTM E84
- Warranty
- 15 years, limited (hardware 1 year)
- Used for
- Full water contact, high traffic, vandal-prone and hose-down areas
Specifications as published by Metpar: Metpar phenolic color thru, Metpar warranty. Final sizes, colors and options are confirmed in your Mavi New York quote.
Metpar Phenolic Color Thru Toilet Partitions Solid Phenolic (Color Thru) is a unique material designed especially for full water contact, high traffic, and vandal-prone environments. It is ideal for high humidity areas, or where hose-down cleaning methods are used. The material is composed of melamine impregnated decorative surface papers superimposed over a varying number of Kraft phenolic core sheets to achieve a desired thickness, forming a one-piece solid and compact core panel, which will not delaminate. This material has a solid and homogeneous color throughout (as compared to black core phenolic that has a black core and black edges). The heavy duty and superior strength of phenolic offers many advantages, including overall damage resistance. Metpar rates Phenolic Color Thru Class B as standard and states the material exceeds Class A under ASTM E84 flame spread and smoke developed testing; confirm the rating your project requires with your estimator. The finish is available in many designer color and wood grain texture options to appeal to any decorating taste. If you are seeking the ultimate heavy duty, water-proof option, then look no further. Product Details & Resources Standard Ship: Ships in 8-12 Business Days! Color Info & Swatch Disclaimers: * Directional patterns on panels larger than 59″ wide will require the pattern to run horizontally to the doors and pilasters. All colors are #60 finish. For selections other than standard colors, contact Metpar for price. Swatches are a printed representation of the color. Please view an actual sample prior to making your final selection. Request samples via samples@metpar.com Metpar Phenolic Color Thru Partitions features & benefits
Construction Features
- Doors and pilasters are 3/4″ thick, panels are 1/2″ thick, and come with a Class-B fire rating.
- Solid homogeneous color throughout and all edges are polished and beveled.
- Wall and pilaster brackets are 13-gauge, type 304 stainless steel.
- Requires 1 ear or 2 ear brackets. All hardware and fittings are stainless steel.
Heavy Duty
Solid phenolic is an extremely heavy-duty material, extremely durable, and is often considered the tank of all toilet partitions.
- One piece solid & compact core panel.
- Superior strength results in extreme damage resistance.
Full Water Contact
Solid phenolic is a unique material that is designed especially for full water contact.
It is ideal for high humidity areas, or where hose-down cleaning methods are used.
Options
- Class B fire rating as standard; Metpar states the material exceeds Class A under ASTM E84 (confirm the rating your project requires).
- Multiple standard & custom colors.
- Wide range of hardware options.
Metpar Phenolic Color Thru Toilet Partitions Solid Phenolic (Color Thru) is a unique material designed especially for full water contact, high traffic, and vandal-prone environments. It is ideal for high humidity areas, or where hose-down cleaning methods are used. The material is composed of melamine impregnated decorative surface papers superimposed over a varying number of Kraft phenolic core sheets to achieve a desired thickness, forming a one-piece solid and compact core panel, which will not delaminate. This material has a solid and homogeneous color throughout (as compared to black core phenolic that has a black core and black edges). The heavy duty and superior strength of phenolic offers many advantages, including overall damage resistance. Metpar rates Phenolic Color Thru Class B as standard and states the material exceeds Class A under ASTM E84 flame spread and smoke developed testing; confirm the rating your project requires with your estimator. The finish is available in many designer color and wood grain texture options to appeal to any decorating taste. If you are seeking the ultimate heavy duty, water-proof option, then look no further. Product Details & Resources Standard Ship: Ships in 8-12 Business Days! Color Info & Swatch Disclaimers: * Directional patterns on panels larger than 59″ wide will require the pattern to run horizontally to the doors and pilasters. All colors are #60 finish. For selections other than standard colors, contact Metpar for price. Swatches are a printed representation of the color. Please view an actual sample prior to making your final selection. Request samples via samples@metpar.com Metpar Phenolic Color Thru Partitions privacy series
Combine any series with any style. Try our design visualizer!
Standard
Standard series includes 58” high doors and panels that are mounted 12” above finished floor. Additional options include, no-sight doors (rabbeted edge on strike side), a full-length multicam hinge, and full-length continuous brackets. This series is the industry standard.
Dorian
Privacy!
Dorian series includes 64” high doors and panels that are mounted 6” above finished floor. Full length continuous brackets, no-sight doors (rabbeted edge on strike side), and a full-length multicam hinge are included. Enhanced level of privacy compared to standard series.
Dorian Max
Ultimate Privacy!
Dorian Max series includes 72” high doors and panels that are mounted 6” above finished floor. Full length continuous brackets, no-sight doors (rabbeted edge on strike side), and a full-length multicam hinge are included. Head to toe king of ultimate privacy!
Metpar Phenolic Color Thru Toilet Partitions mounting styles
Combine any style with any series. Try our design visualizer!
Overhead Braced
Created for areas where high strength is required and installation considerations prevent other toilet partition options. Headrail is used for additional strength. Most popular style.
Floor Mounted
Floor mounted structure is ideal for restrooms with concrete floors. It provides a consistent appearance across the top of panels and pilasters for a modern look. Headrail is not required.

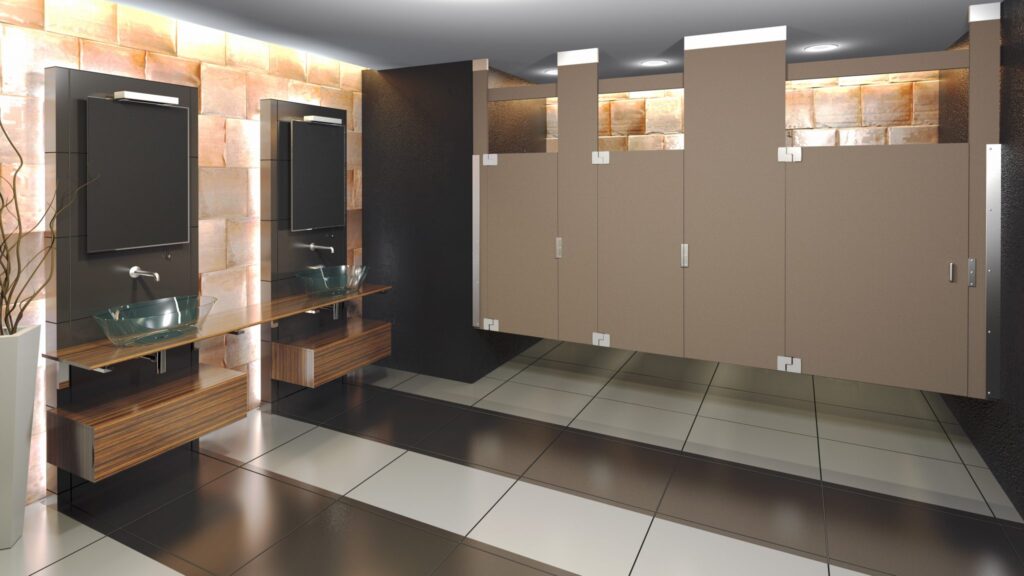

Ceiling Hung
This style provides for unobstructed floor space beneath the stalls. Floor to ceiling pilasters can be added to provide maximum strength and durability.
Floor to Ceiling
Recommended for rooms with low to medium height ceilings where additional stability is desired. Maximum recommended floor to ceiling height of 96″. Requires ceiling reinforcement.
Construction Features Detail
Phenolic Material
Phenolic is composed of melamine impregnated decorative surface papers superimposed over a varying number of phenolic core sheets. The material is super strong and is fully resistant to water. (Above picture shown in black core phenolic).
Anti-Grip Headrail
Bright dipped aluminum headrail to match chrome hardware for a coordinated uniform appearance. The top is pointed, resulting in an “anti-grip” top structure to prevent hanging from the partition. (Above picture shown in black core phenolic).
Pilaster Shoe
Each pilaster has a 3” high #4 finish stainless steel plinth (shoe) beautifully connecting the bottom of the pilaster to the floor, aesthetically hiding the floor mountings and any visible drill holes.
U Brackets
Pilasters are connected to the panels with U brackets, providing a structurally strong and tight connection. Hardware is constructed stainless steel stirrups type T and F.
Door Stop / Surface Latch
The door stop consists of a wrap-around strike and keeper and the door lock is a stainless steel surface mounted latch.
Premium Options
Rabbeted Edges
Rabbeted edges on the strike side of each door to mate with a coinciding rabbeted edge on each pilaster provides for ultimate privacy on the latch side of the partition door. (Above picture shown in black core phenolic).
Multi-Cam Hinge
A full height (bottom of door to top of door) MultiCam hinge is available to eliminate any gaps on the hinge side of each partition door for ultimate privacy.
Continuous Brackets
Full length continuous brackets are available in stainless steel (standard are aluminum).
Stainless Steel Hardware
All hardware is available in #4 brushed stainless steel for an extra durable appearance & even longer-lasting product lifetime. This material is heavy duty and will not rust. (Hardware displayed for metal partitions.)
FT Mounts on FP Pilasters
If you’re looking for a heavier duty floor mounted on Overhead Braced (FP) partitions, you can upgrade to heavier duty floor mounted (FT) partition floor mounts. This provides a more sturdy and heavier duty mounting option for extra base/structural stability and support.
Fire Ratings
Multiple fire-resistant grades of material are available.
Hardware Overview
Materials: Door hardware is available in die-cast chrome or cast stainless steel. Bracket hardware is available in die-cast chrome or stamped stainless steel.
Replacement Parts: If you would like to order replacement parts, please identify your part number and submit this request form. Click Here!
Door Hardware
- Top Hinge Bracket
- Bottom Hinge Bracket
- Strike & Keeper (IN/OUT swing)
- Surface Mounted Latch
- Door Pull
- Coat Hook & Bumper
- Door Bumper
Brackets
- 2 Ear Bracket
- 1 Ear Bracket
Mountings & Headrails
- Aluminum Anti Grip Headrail
- Aluminum Rectangular Headrail
- Headrail Bracket #132
- Anti Grip Headrail End Cap
- Headrail to Pilaster Bracket #131
- 3″ High FP & 5″ High FT/CH Pilaster Shoe
- Post Cap
- Post Shoe
- Shoe Clip
- 3/4″ Shoe Floor Bracket
