- Bobrick TrimLineSeries™ HPL Toilet Partitions
Bobrick TrimLineSeries 2030 Toilet Partitions TrimLineSeries™ HPL Toilet Partitions — High-Pressure Laminate Solutions Mavi New York Bobrick TrimLineSeries™ HPL Toilet Partitions Overview & Applications If your budget is not that high, TrimLineSeries can be your best choice. It offers varieties of colors and a long range of finishes. Its customized steel-core stiles enhance durability with cutting-edge technology. Get 5 years of limited warranty. Bobrick TrimLineSeries HPL overview & applications
If your budget is not that high, TrimLineSeries can be your best choice. It offers varieties of colors and a long range of finishes. Its customized steel-core stiles enhance durability with cutting-edge technology. Get 5 years of limited warranty.
Bobrick TrimLineSeries HPL at a glance
- Series covered by Bobrick data
- 2030 series: 2031 floor-anchored, 2032 overhead-braced, 2036 floor-to-ceiling, 2038 ceiling-hung
- Construction
- 1" finished stiles, panels and doors; .050" HPL face over a 3-ply resin-impregnated particleboard core
- Edges and stiles
- Type 304 stainless steel satin edge trim; stiles have an 11-gauge steel core
- Sizes
- Doors 72" high; panels up to 60" wide and 72" high
- Hardware
- Type 304 stainless steel hinges, latches, keepers, hooks and brackets; 4" stainless shoes; anodized aluminum headrail on overhead-braced
- ADA
- Handles and latches stated to meet ADA 404.2.7 and 309.4 (5 lb maximum force)
- Warranty
- 5 years against breakage, corrosion, delamination and workmanship
- Care note
- Spraying or hosing HPL partitions voids the warranty. Bobrick recommends phenolic for hose-down areas.
Specifications as published by Bobrick: Bobrick TrimLine 2030 technical data. Final sizes, colors and options are confirmed in your Mavi New York quote.
Ideal Applications
- Mass transit hubs
- Office spaces
- Industrial facilities
- Schools and universities
Pricing & Delivery
TrimLineSeries HPL — Price tier: $ Lead Time: 1-3 Business Days
To deal with lower budget projects, DesignerSeries™ HPL is also handy. It is similar to TrimLineSeries but does not include the stainless edge trim. Both ensure a classy look on a budget without compromising quality.
Core Features & Specifications
| Feature / Component | Technical Description | Specification Diagrams |
|---|---|---|
| Material Construction | 1” thick HPL (High-Pressure Laminate) panels, doors, and stiles. Built for heavy-use environments with customized options in colors and textures. | |
| Edge Protection | Stainless steel edge trim offers immense protection against impacts, ensuring uncompromised quality and durability. | |
| Standard Hardware | Bobrick standard concealed hardware package including latch, keeper, brackets, barrel hinges, coat hook, and pulls. | |
| Durability & Fire Safety | Customized steel-core stiles provide extensive support. Complies with ASTM E84 Standard Fire Rating. Graffiti and corrosion resistant. |
Height & Gap Dimensions
Our partitions are ready-to-buy. Utilize the links and charts below to customize your specifications for a personalized restroom design.
| Series | Door & Panel Size | Thickness | Model Number |
|---|---|---|---|
| TrimLineSeries | Doors 72″ high; panels up to 60″ wide and 72″ high | 1″ stiles, panels and doors | 2030 |
| Gap Option | Technical Specifications | Model Number |
|---|---|---|
| Standard Reduced-Gap | Hinge or Keeper gaps: ± 3/32″ Wall gaps: 1/2″ to 1″ | 2030 |
Hardware & Bracket Options
Heavy-duty hardware package configurations ensure lasting operation in medium to high-traffic bathrooms.
Peep No More™ Sign
Automatic occupancy indicator sign provides great privacy and occupancy tracking for restroom stalls.
Concealed SS Package
Standard concealed stainless steel package includes barrel hinges, latch, keeper, bracket, coat hook, and door pulls.
SS Occupancy Latch
Stainless steel occupancy latch and keeper available on MetroSeries and AccentSeries stalls.
Bracket Comparison
Standard stainless steel bracket (left) vs. heavy-duty full-height bracket (right) for 2030 models.
Mounting Configurations
| Mounting Style | Model Number (2030 series) |
|---|---|

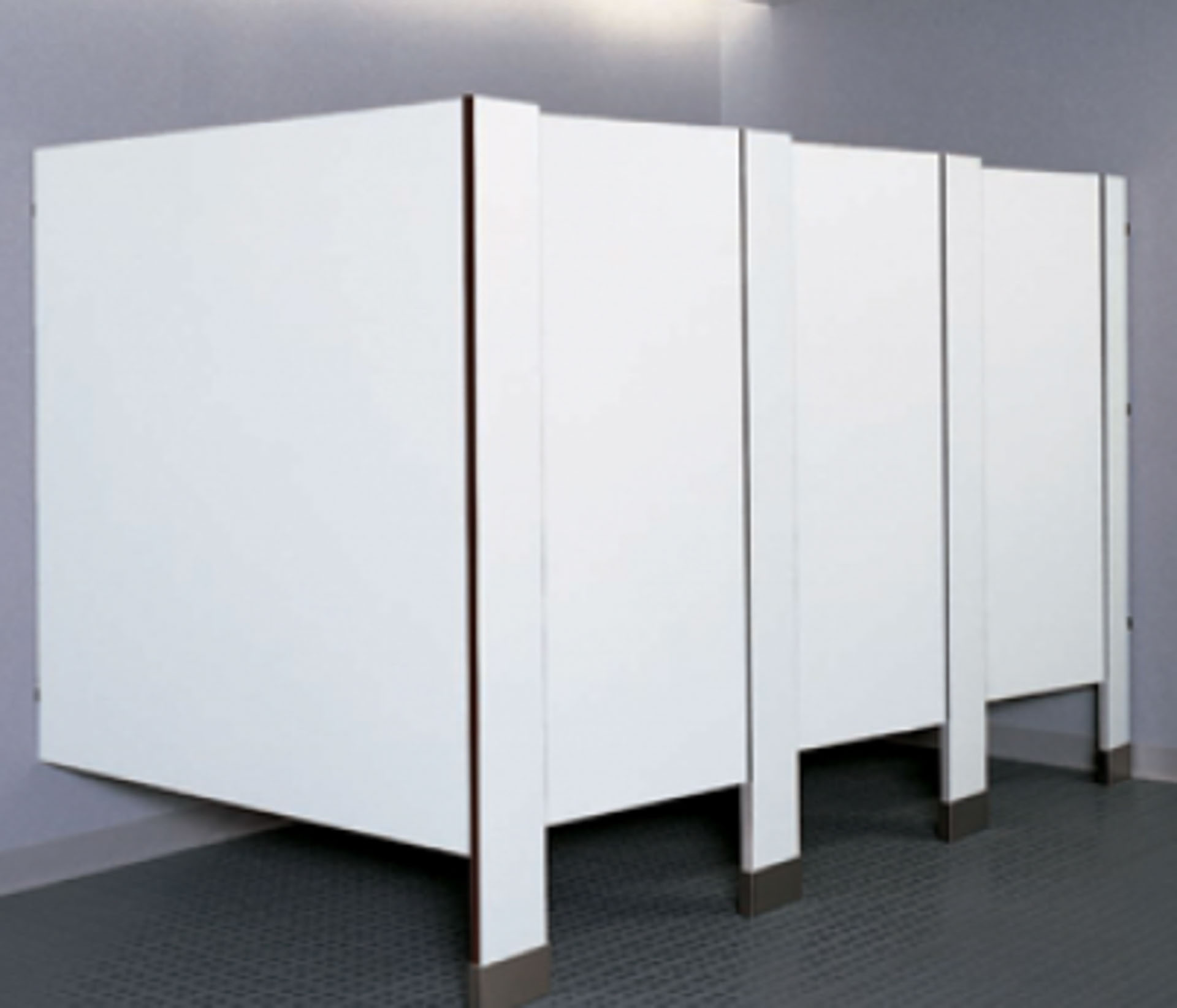

| Floor-Anchored | 2031 |

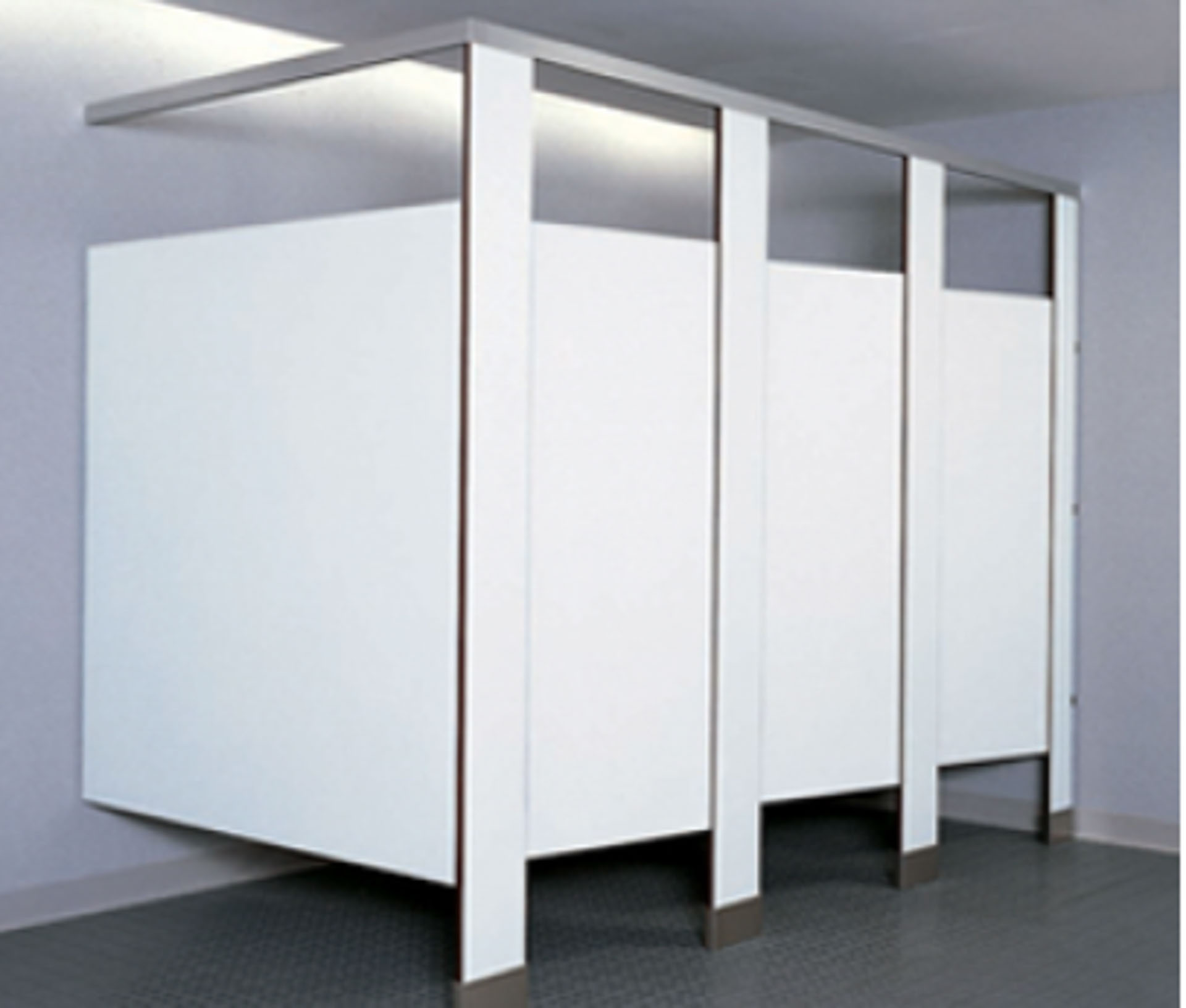

| Overhead-Braced | 2032 |
| Floor-to-Ceiling | 2036 |

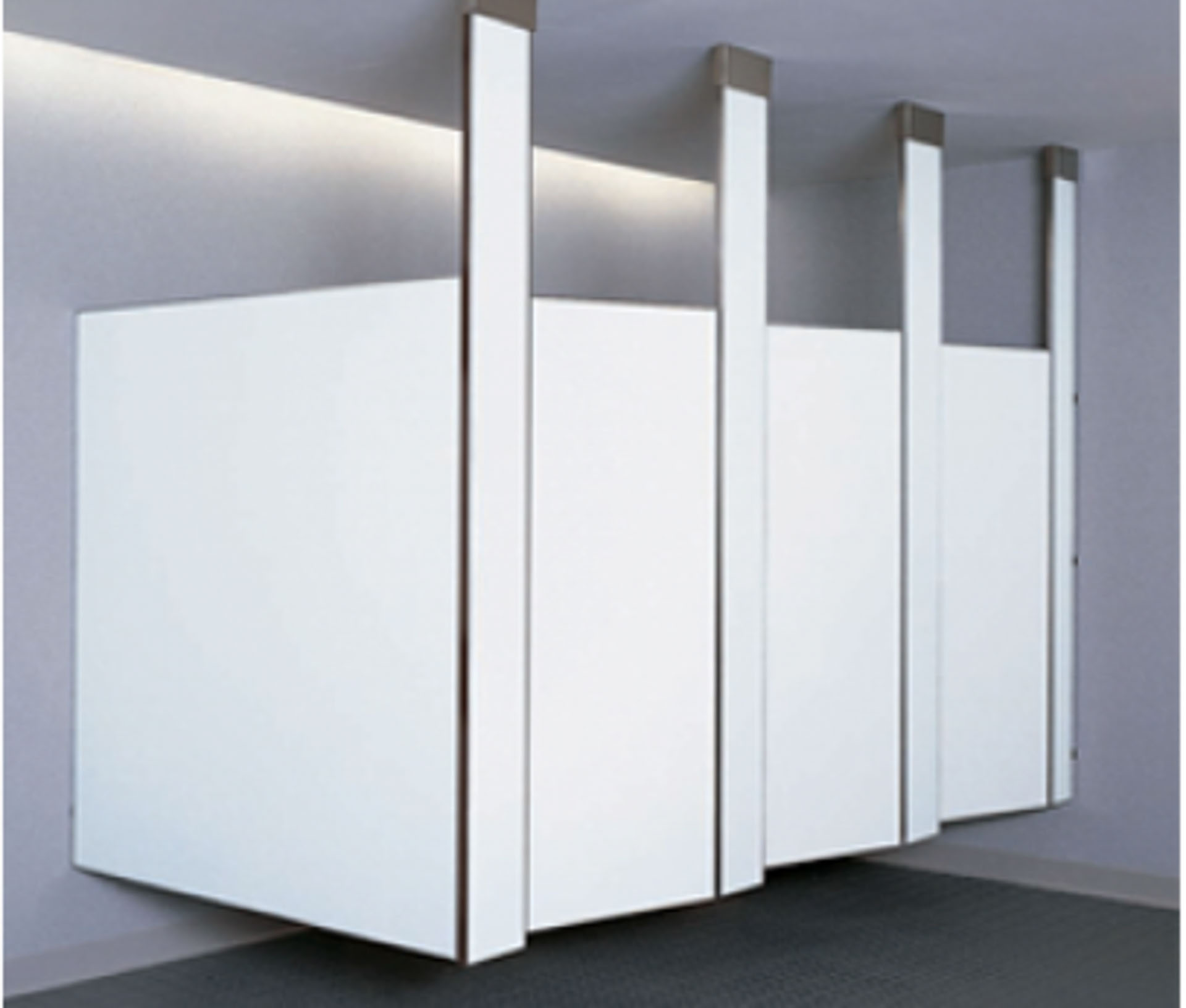

| Ceiling-Hung | 2038 |
Post-to-ceiling screens are model 2033.
Colors & Patterns
TrimLineSeries HPL is available in a variety of colors, textures, and woodgrains. Choose from the patterns you love to create a stylish, durable environment.
Dividers & Screens
TrimLineSeries is also used for dressing compartments, urinal screens and entrance screens. Ask your Mavi New York estimator for the model numbers and sizes that fit your layout.
Coordinate urinal screens and dressing compartments. Select composite for wet areas.
