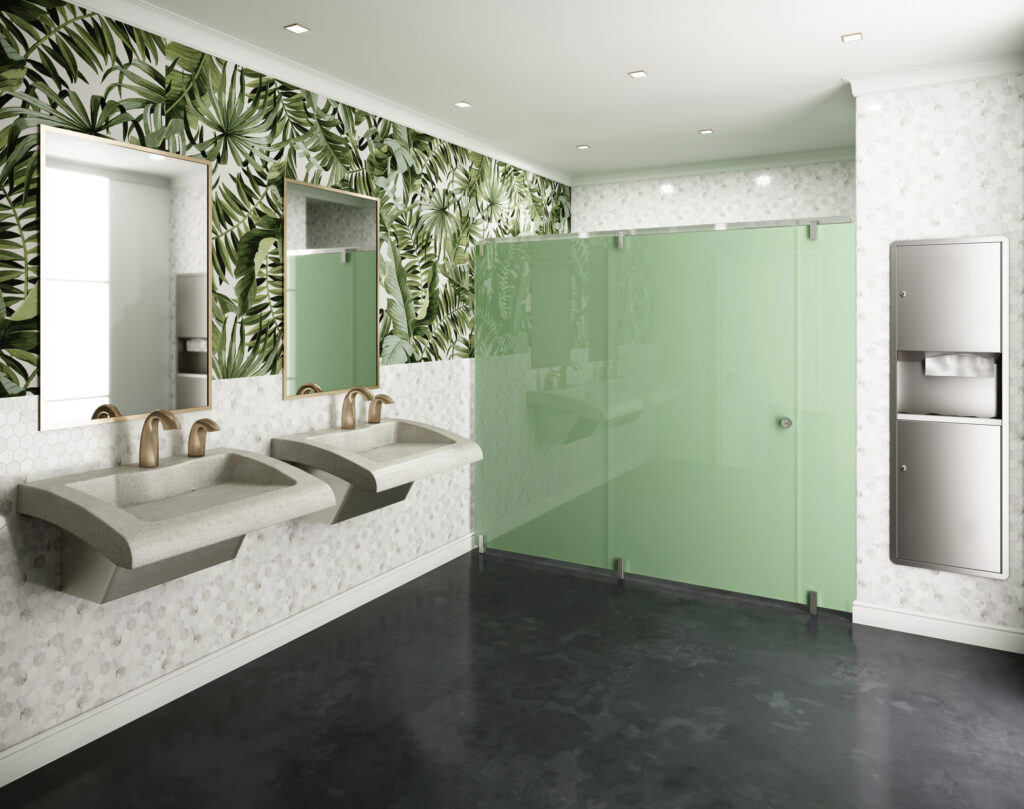

Bradley Euro Style Lucent Series at a glance
- Material
- Tempered, ceramic screen-printed glass, 0.4" (10 mm) thick, 100% recyclable, polished corners
- Hardware
- Stainless steel brackets, rosettes, recessed headrail, stirrup brackets; hydraulic self-closing stainless hinge
- Height
- 85.1" including 1.97" floor clearance (no 9" above-floor option)
- Colors
- 9 standard colors plus custom
- ADA note
- To include Lucent, an ADA stall must be at least 62" deep (wall-mounted toilet) or 65" deep (floor-mounted), and at least 66" wide
- Mounting
- Overhead braced; privacy and urinal screens available
- Surface burning
- Not tested or rated, per Bradley's specification
- Warranty
- 5 years
Specifications as published by Bradley: Bradley Lucent Series, Lucent datasheet, CSI spec 102113.50. Final sizes, colors and options are confirmed in your Mavi New York quote.
Exclusive Hardware & Hinge Features
- Exclusive Hardware and Door Hinge Features of Lucent Series.
- 100% recyclable enameled tempered glass.
- Minimalist modern design with the optical look.
- Airy and light space can be ensured with a flat surface.
- Maintenance-free and quiet with 180-degree gravity slow-close hinge.
- Hydraulic hinge is available additionally.
Product Details & Resources
— CSI 3-Part Spec DOC Section 102113.19 Solid Plastic Toilet Stalls
— CSI 3-Part Spec PDF Section 102113.19 Solid Plastic Toilet Stalls
— Technical Data Sentinel Headrail Braced Solid Plastic Toilet Stalls
Enameled Glass Colors
Product Literature
Brochures and selection guides for architects, contractors and facility teams.
Corporate Interiors BrochureRequest a copy
Material Selection Guide – Glass & Phenolic LTDownload
Euro Style Partitions BrochureDownload
Warranty Information
We provide warranty for every partition we sell. The effectiveness of the warranty will continue if the purchase of the partition goes with our terms and conditions. We ensure one year of warranty. The repair or replacement of the defective toilet partition units will be the liability of Mavi New York with this warranty. But Mavi New York will not be liable for consequential, incidental, or indirect damage caused by the purchaser. Our warranty extends to institutional and commercial purchasers.
- 15 YearsPowder Coated Steelagainst rust-out
- 15 YearsStainless Steelagainst rust-out
- 15 YearsBradmar Solid Plastic
- 3 YearsPlastic Laminateagainst delamination & discoloration
- 3 YearsPhenolic Partitionsagainst delamination & discoloration
- 15 YearsFusion Granite Panels/Pilasters
- 5 YearsBradley Euro Style (Phenolic & Glass)
- 5 YearsChrome Plated Zamac Hardware
- LifetimeStainless Steel Hardware
This warranty does not cover installation labor charges and does not apply to any units that have been damaged by accident, abuse, improper installation, improper maintenance, or altered in any way.
The replacement or repair of defective partitions units as stated in this warranty shall constitute the sole remedy of the purchaser and the sole liability of Mavi New York under this warranty. MAVI NEW YORK SHALL NOT UNDER ANY CIRCUMSTANCES BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR INDIRECT DAMAGES CAUSED BY DEFECTS IN PARTITION UNITS OR ANY DELAY IN THE REPAIR OR REPLACEMENT THEREOF.
Updated: October, 2021
Application Gallery
From takeoff to delivery of Bradley Euro Style Lucent Series to your site
- Call or send plansCall 718-874-3805, or send drawings, a room list or the spec section for Bradley Euro Style Lucent Series.
- Specialist takeoffOur toilet partition estimator counts stalls, urinal screens and hardware, confirms mounting, ADA layout and colors, and returns a priced quote.
- Order and deliveryWe place the order with Bradley and arrange delivery to your site. Installation is available across NY, NJ and CT.
