Bradley Euro Style Toilet Partitions – Float Series

Bradley Euro Float Toilet Partitions | Phenolic | Mavi New York

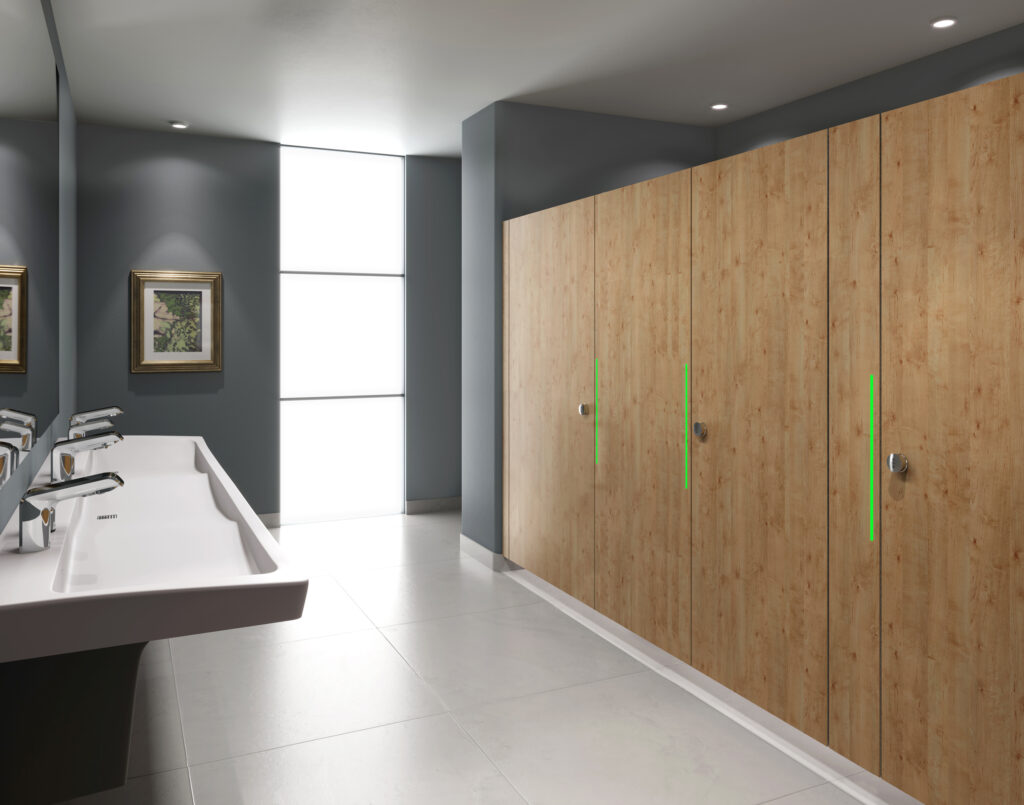

Float Series partitions hide the hardware. The headrail runs inside the top of the panel and the pilaster feet are concealed, so the stalls look like they're floating a few inches off the floor even though they're anchored the same way any commercial partition is.

That look matters in two places: lobbies and public restrooms where the restroom is part of the design, and buildings where the floor gets mopped every night. With no exposed feet to catch grime, a custodian can run a mop straight under the panel. Bradley's Euro Float Series is the manufacturer's floating-look toilet partition system — the headrail and pilaster shoes are concealed rather than absent, so you get the open, minimalist appearance without giving up the anchoring of a standard commercial partition.

Bradley Euro Style Float Series at a glance

Construction

3 mm phenolic faces over a foam core with aluminum framing; panels, doors and pilasters 1.4" thick

Float effect

Aluminum feet and 1.2" x 1.2" headrail are both recessed about 6" from the front panel face

Height

81.9" including 4" floor clearance; 9" or 12" above-floor option for ADA stalls

Hinges

180 degree self-closing; hidden self-closing hinges optional

Options

LED visual occupancy indicator; Nexa real-time occupancy system

Colors

7 standard colors plus custom

Ratings

ADA, ASTM D6578, ASTM D2794, ASTM E84 Class B; LED UL listed

Mounting

Overhead braced; privacy and urinal screens available

Warranty

5 years against delamination

Specifications as published by Bradley: Bradley Float Series, Float datasheet, CSI spec 102113.17. Final sizes, colors and options are confirmed in your Mavi New York quote.

We install Division 10 specialties throughout the New York Metropolitan Area, New Jersey and Connecticut. We supply and ship Bradley Euro Float partitions to projects across the Northeast and Mid-Atlantic, including PA, MA, MD, DE, RI, NH, ME and Washington D.C.

Exclusive Hinge & Design Features

• LED occupancy indicator — shows which stalls are free from the doorway, without pushing on doors.
• Minimalist, concealed-hardware design for a clean, modern restroom.
• Flush surface mounting style.
• Lightweight panel design that speeds up installation.
• Concealed feet that make floor cleaning and mopping easier.
• 180° gravity slow-close hinges — quiet, maintenance-free operation (not a finger-protection hinge).

Send Your Restroom Plan — Get a Float Series Quote

What Makes Float Series Different

Standard commercial toilet partitions use a headrail bolted across the top of the panels and pilasters that rest on visible metal shoes at the floor. Float Series conceals both. The headrail is built into the top edge of the panel instead of running above it, and the pilaster shoe sits inside the base rather than out in the open. The result reads as a floating stall, but the anchoring underneath is the same commercial-grade mounting used on any Bradley partition system.

The concealed base is not just a style choice. It removes the ledges and exposed hardware where grime and standing water collect, so nightly cleaning is faster and the restroom holds its finished look longer between deep cleans.

Where Float Series Fits — and Where It Doesn't

Good fit

Hotel lobbies and public restrooms, Class A office buildings, corporate headquarters, museums and cultural venues, upscale retail, and restaurant restrooms — anywhere the restroom is part of the design experience.

Think twice

School restrooms, stadium concourses, and other heavy-vandalism environments. Phenolic itself holds up well, but a concealed-hardware Euro system is a premium spend — a standard floor-mounted, overhead-braced HDPE system often makes more sense per stall in high-abuse settings.

What Is Phenolic Core?

Phenolic core is made of layers of resin-saturated kraft paper compressed under heat into a solid panel with a hard decorative surface. It doesn't absorb water, so it won't swell or delaminate in a humid restroom, and graffiti wipes off the surface without leaving a ghost mark. It's the material specified when a restroom needs to look finished and still hold up to commercial daily traffic.

What Mavi New York Handles on Your Project

• Field measurement and takeoff from your architectural drawings.
• Coordination with the plumbing and tile trades on rough-in and blocking — Euro-style systems are less forgiving of an out-of-tolerance wall than a standard partition.
• Delivery and installation across the New York Metro area, New Jersey, and Connecticut.
• Pickup of in-stock items (powder-coated and stainless steel) from our Long Island City location.

At a Glance

• Manufacturer: Bradley Corporation
• Series: Euro Style – Float
• Core material: Phenolic (glass core also available on select Euro Style lines)
• Mounting: Concealed headrail, flush surface mount, hidden pilaster feet
• Hinge: 180° gravity slow-close
• Warranty: 5 years (phenolic & glass), lifetime on stainless hardware
• Service area: NY Metro, NJ, CT (install) • Northeast & Mid-Atlantic (supply)

Product Details & Resources

CSI Spec Section 102113.17 Phenolic LT Euro Float PDF

CSI 3-Part Spec Section 102813.14 Accessories Elvari PDF

Technical Data Euro Restroom Partitions FLOAT Series

For architects and specifiers: downloadable CSI spec sections and technical data sheets above.

Phenolic Core Colors

Seven phenolic finishes, grouped by tone. Need a sample before you spec? Ask and we'll send physical chips.

Product Literature

Brochures and selection guides for architects, contractors and facility teams. Each opens as a PDF.

• Corporate Interiors BrochurePDF · 1 MBDownload
• Material Selection Guide – Glass & Phenolic LTPDF · 102 KBDownload
• Euro Style Partitions BrochurePDF · 4.2 MBDownload

Warranty Information

We provide a warranty on every partition we sell, effective as long as the purchase follows our terms and conditions. Under this warranty, repair or replacement of a defective toilet partition unit is Mavi New York's responsibility; Mavi New York is not liable for consequential, incidental, or indirect damages caused to the purchaser. This warranty extends to institutional and commercial purchasers.

• 15 YearsPowder Coated Steelagainst rust-out
• 15 YearsStainless Steelagainst rust-out
• 15 YearsBradmar Solid Plastic
• 3 YearsPlastic Laminateagainst delamination & discoloration
• 3 YearsPhenolic Partitionsagainst delamination & discoloration
• 15 YearsFusion Granite Panels/Pilasters
• 5 YearsBradley Euro Style (Phenolic & Glass)
• 5 YearsChrome Plated Zamac Hardware
• LifetimeStainless Steel Hardware

Updated: August 2026

Application Gallery

Bradley Euro Style Toilet Partitions – Float Series: frequently asked questions

Ready to Spec Bradley Euro Float Partitions?

Send us your restroom plan and we'll return a stall count and quote for the Float Series.

Send Your Restroom Plan

From takeoff to delivery of Bradley Euro Float Toilet Partitions | Phenolic | Mavi New York Float Series partitions hide the hardware. The headrail runs inside the top of the panel and the pilaster feet are concealed, so the stalls look like they're floating a few inches off the floor even though they're anchored the same way any commercial partition is. That look matters in two places: lobbies and public restrooms where the restroom is part of the design, and buildings where the floor gets mopped every night. With no exposed feet to catch grime, a custodian can run a mop straight under the panel. Bradley's Euro Float Series is the manufacturer's floating-look toilet partition system — the headrail and pilaster shoes are concealed rather than absent, so you get the open, minimalist appearance without giving up the anchoring of a standard commercial partition. Bradley Euro Style Float Series to your site

1. Call or send plansCall 718-874-3805, or send drawings, a room list or the spec section for Bradley Euro Style Float Series.
2. Specialist takeoffOur toilet partition estimator counts stalls, urinal screens and hardware, confirms mounting, ADA layout and colors, and returns a priced quote.
3. Order and deliveryWe place the order with Bradley and arrange delivery to your site. Installation is available across NY, NJ and CT.
